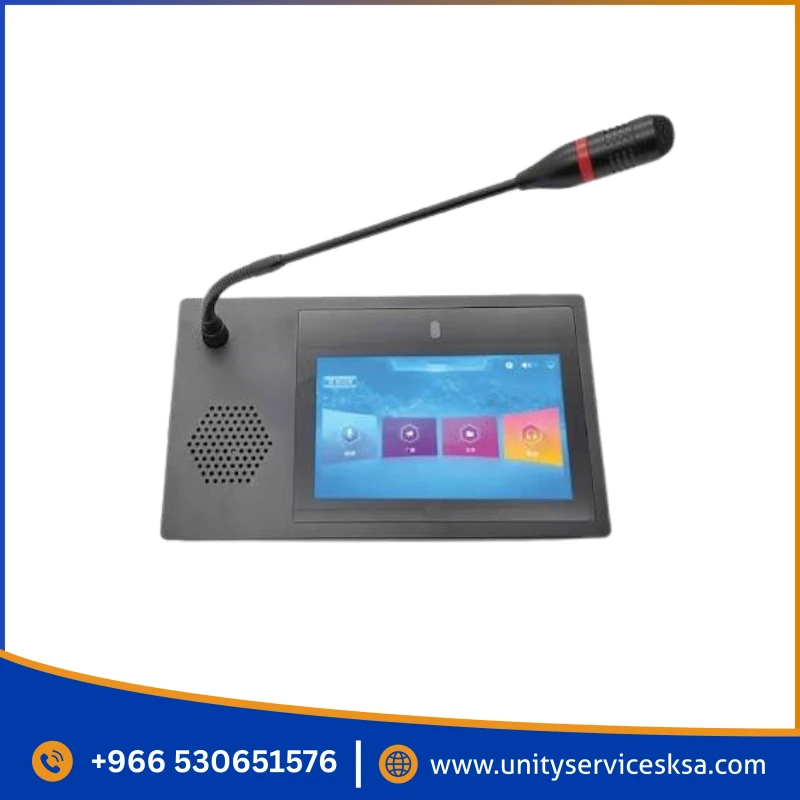

C-YARK CY-BS510B2 IP Network Paging Microphone

The C-YARK CY-BS510B2 is an IP network paging microphone designed for use in modern IP public address and voice evacuation systems in offices, campuses, factories, and commercial buildings. It integrates an LCD display, built‑in encoder/decoder, local audio I/O, and monitoring speaker into one desktop console, allowing operators to make live announcements, trigger broadcasts, and manage multiple zones over an Ethernet network. With intelligent power management and support for common network protocols, the C-YARK CY-BS510B2 offers reliable, energy‑efficient paging control in multi‑zone environments.

Key features & benefits

• LCD screen and user-friendly interface: 128×64 LCD display provides clear menu navigation and real-time status, making paging and zone selection simple for operators.
• ​Built‑in network audio codec: Encodes and decodes audio over TCP/IP, UDP, and IGMP to deliver 16‑bit stereo, CD‑quality sound across the IP network.
• ​Local audio connectivity: 1 AUX input for local music or external sources and 1 AUX output to feed external amplifiers or recorders.
• ​Intelligent power saving: Automatic standby when there is no music or paging keeps standby power consumption below 3 W, reducing energy use and heat.
• ​Multi‑zone paging: Supports extension to multiple zones with 8 zone selector keys, enabling targeted or group announcements.
• ​Flexible IP deployment: Works anywhere an Ethernet connection is available and supports overlay IP and cross‑layer routing for complex network topologies.
• ​Built‑in monitor speaker: Integrated 2 W full‑range monitoring loudspeaker allows bidirectional monitoring of broadcasts and return audio.
• ​Hands‑free communication: Supports external earphones for hands‑free calling and receiving broadcasts in noisy control rooms.
• ​High-quality encoding of inputs: Encodes AUX and MIC signals into high‑quality audio data for broadcasting to specified terminal zones or devices.
