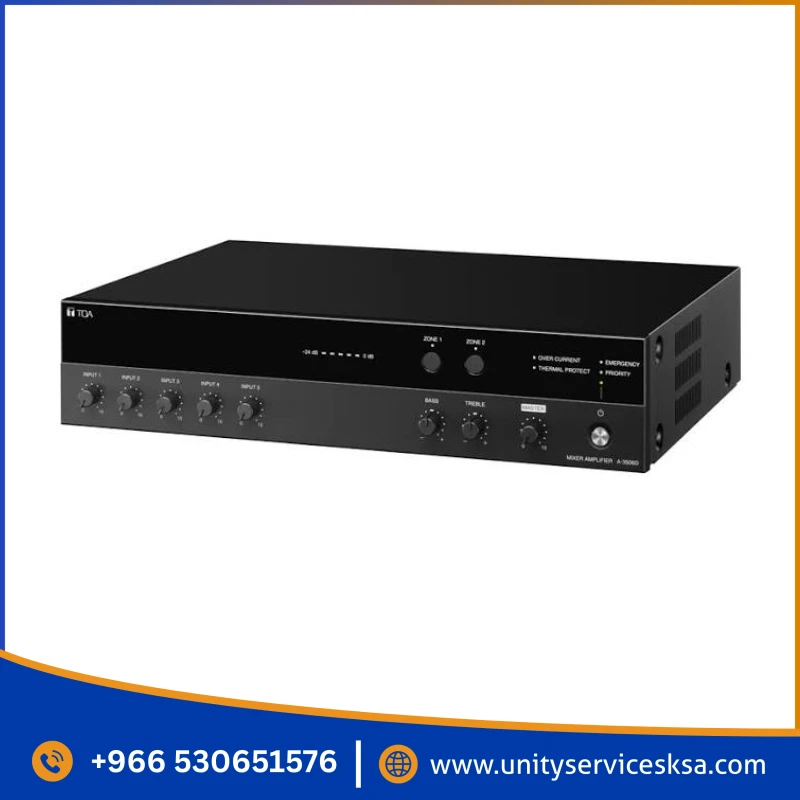

Name: TOA A-3524D Digital Mixer Amplifier | 240W, 2-Zone PA System
Brand: TOA
Availability: InStock

Disclaimer

Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch. Product data used in this website is based solely on its manufacturer provided information, authenticity and accuracy are their responsibility only.

TOA A-3524D Digital Mixer Amplifier | 240W, 2-Zone PA System

Price: SAR 0

Brand: TOA

Model: A-3524D

Key Features :

Model: A-3524D
Power Source: 100 - 240 V
Rated Output: 240 W
Frequency: 50 Hz - 20 kHz
S/N Ratio: 88 dB

Download PDF

+966 +966

Demo Store....Coming Soon... Website Under Maintenance.... **المتجر التجريبي** **سيتم إطلاق الموقع قريبًا** **الموقع الإلكتروني قيد الصيانة حاليًا** نعتذر عن الإزعاج، ونعمل حاليًا على تطوير وتحسين الموقع لتقديم تجربة أفضل لكم. **شكرًا لثقتكم وتفهمكم.**

Specification
Description
Video
FAQ
Reviews (0)

Specification

TOA A-3524D Digital Mixer Amplifier
Power Source	100 - 240 V AC, 50/60Hz
Rated Output	240 W
Power/Current Consumption	314 W (Rated output), 70 W (based on EN62368), 200 mA or less (when power switch is OFF)
Frequency Response	50 Hz - 20 kHz ±3 dB (1/8 rated output)
Distortion	1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025))
Tone Control	Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz
S/N Ratio	88 dB or more (Master volume: min.) 76 dB or more (Master volume: max.) 55 dB or more (INPUT 1 - 6) 72 dB or more (INPUT 7) (A-weighted)
Audio Input	INPUT 1, 2: -60 dB(1)(MIC) / -20 dB (1) (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (5 pins)/ø 6.3 mm phone jack (3P) Note: MIC inputs are equipped with phantom power (24V DC, ON/OFF switchable) INPUT 3: -60 dB(1), 600 Ω, electronically-balanced, ø 6.3 mm phone jack (3P) INPUT 4: -60 dB(1)(MIC) / -20 dB (1) (LINE) selectable, 600 Ω, electronically-balanced, ø 6.3 mm phone jack (3P) INPUT 5: -20 dB (1), 10 kΩ, unbalanced, RCA pin jack x 2 PWR AMP IN: 0 dB (*1), 600 Ω, unbalanced, RCA pin jack
Audio Output	Speaker out: Low impedance (4 - 16 Ω) / High impedance (DIRECT, ZONE 1, ZONE 2: 100 V / total 42 Ω), removable terminal block (6 pins) (ZONE 1 / ZONE 2 is selectable, max. 240 W per output) Rec out: 0 dB(1), 600 Ω, unbalanced, RCA pin jack Line out 1, 2: 0 dB (1) , 600 Ω, unbalanced, RCA pin jack (Interlock with zone selection is possible)
Control Input	2 channels. no-voltage make contact input, open voltage: 35 V DC or less, Short circuit current: 10 mA or less, removable terminal block (5 pins) ZONE CONTROL IN: No-voltage make contact input, even voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (4 pins)
Control Output	POWER REMOTE OUT: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins) EMERGENCY OUT: Open collector output, withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins) ZONE CONROL OUT: Open collector output (polarized), withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins)
Operating Temperature	-10°C to +40°C
Dimensions	420 (W) × 96.1 (H) × 313.1 (D) mm
Weight	4.9 kg
Accessory	Power Cord (2 m) x 1, Audio Input Removavble Terminal Plug (3.81 mm, 5 pins) x 2, Control I/O Removable Terminal Plug (3.81 mm, 4 pins) x 2, Remote Control Removable Terminal Plug (3.5 mm, 4 pins) x 1, Speaker Out Removable Terminal Plug (5 mm, 6 pins) x 1, Volume Control Cover x 4

Description

TOA A-3524D Digital Mixer Amplifier | 240W, 2-Zone PA System ,

Elevate your public address system with the TOA A-3524D—a powerful and intuitive 240W digital mixer amplifier designed for modern commercial environments. This robust 100V line amplifier combines the simplicity of a traditional mixer with advanced digital signal processing (DSP) for crystal-clear sound distribution in schools, retail spaces, office buildings, and hospitality venues.

Effortless Audio Management

The A-3524D simplifies complex audio setups. Its standout feature is the integrated 4-zone speaker selector, allowing you to easily broadcast announcements or background music to specific areas of your facility. Forget bulky equipment; this unit packs professional-grade power and flexibility into an efficient, space-saving 2U rack-mountable chassis.

Key Features for Superior Performance:

Powerful 240W Output: Delivers robust, high-fidelity audio across extensive speaker systems.
Integrated 4-Zone Selector: Control audio distribution precisely where you need it, from paging to background music.
Advanced DSP Functionality: Benefit from built-in effects like equalization, compression, and feedback suppression for optimal sound quality.
Versatile Inputs: Multiple microphone and line inputs ensure compatibility with all your audio sources.
