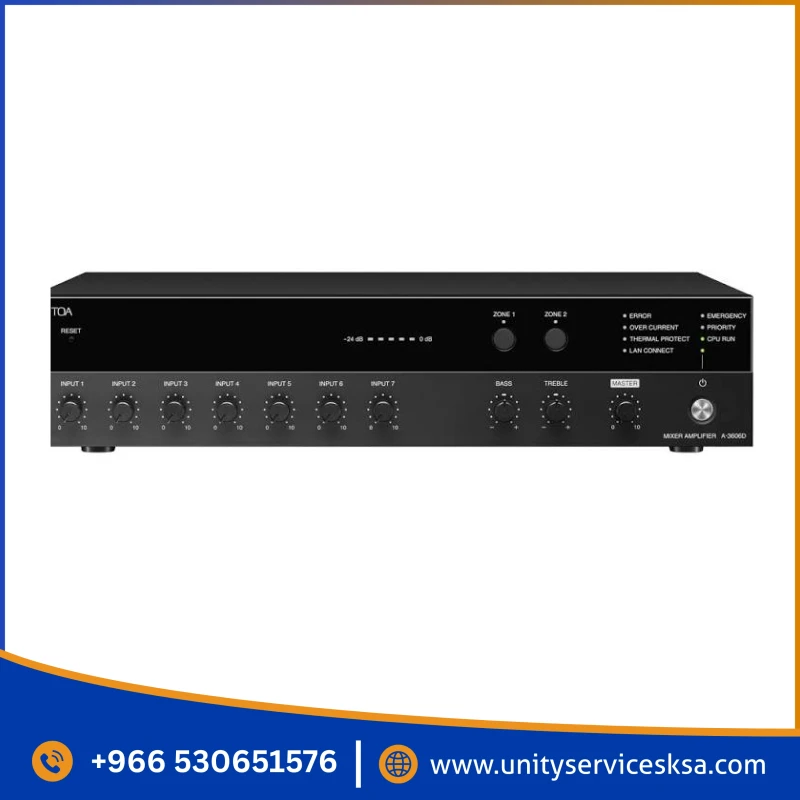

Name: TOA A-3624D 240W PA Mixer Amplifier - School & Office Paging
Brand: TOA
Availability: InStock

Disclaimer

Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch. Product data used in this website is based solely on its manufacturer provided information, authenticity and accuracy are their responsibility only.

TOA A-3624D 240W PA Mixer Amplifier - School & Office Paging

Price: SAR 0

Brand: TOA

Model: A-3624D

Key Features :

Model: A-3624D
Power Source: 100 -240V
Rated Output: 240 W
S/N Ratio: 88 dB
Weight: 5 kg

Download PDF

+966 +966

Demo Store....Coming Soon... Website Under Maintenance.... **المتجر التجريبي** **سيتم إطلاق الموقع قريبًا** **الموقع الإلكتروني قيد الصيانة حاليًا** نعتذر عن الإزعاج، ونعمل حاليًا على تطوير وتحسين الموقع لتقديم تجربة أفضل لكم. **شكرًا لثقتكم وتفهمكم.**

Specification
Description
Video
FAQ
Reviews (0)

Specification

Toa A-3624D Digital Mixer Amplifier
Power Source	100 - 240 V AC, 50/60Hz
Rated Output	240 W
Power/Current Consumption	314 W (Rated output), 70 W (based on EN62368), 200 mA or less (when power switch is OFF)
Frequency Response	50 Hz - 20 kHz ±3 dB (1/8 rated output)
Distortion	1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025))
Tone Control	Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz
S/N Ratio	88 dB or more (Master volume: min.) 76 dB or more (Master volume: max.) 55 dB or more (INPUT 1 - 6) 72 dB or more (INPUT 7) (A-weighted)
Audio Input	INPUT 1, 2: -60 dB(1)(MIC) / -20 dB (1) (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3 pins) Note: MIC inputs are equipped with phantom power (24V DC, ON/OFF switchable) INPUT 3, 4: -60 dB(1), 600 Ω, electronically-balanced, removable terminal block (3 pins) Note: MIC inputs are equipped with phantom power (24V DC, ON/OFF switchable) INPUT 5, 6: MIC (BUS 1) / LINE (BUS 2) selectable MIC : -60 dB(1), 600 Ω, electronically-balanced, removable terminal block (3 pins) LINE: -20 dB (1), 10 kΩ, unbalanced, RCA pin jack x 2 INPUT 7: -20 dB(1), 10 kΩ, unbalanced, RCA pin jack x 2 PWR AMP IN: 0 dB (*1), 600 Ω, unbalanced, RCA pin jack
Input Bus	INPUT 1 - 4: BUS 1 INPUT 5 - 6: BUS 1/BUS 2 selectable INPUT 7: BUS 2
Audio Output	Speaker out: Low impedance (4 - 16 Ω) / High impedance (DIRECT, ZONE 1, ZONE 2: 100 V / total 42 Ω), removable terminal block (6 pins) (ZONE 1 / ZONE 2 is selectable, max. 240 W per output) Rec out: 0 dB(1), 600 Ω, unbalanced, RCA pin jack Line out 1, 2: 0 dB (1) , 600 Ω, unbalanced, RCA pin jack (Interlock with zone selection is possible)
Operating Temperature	-10°C to +40°C
Operating Humidity	85 %RH or less (no condensation)
Dimensions	420 (W) × 96.1 (H) × 313.1 (D) mm
Weight	5 kg

Description

TOA A-3624D 240W PA Mixer Amplifier - School & Office Paging

The TOA A-3624D Digital Mixer Amplifier is a high-power, feature-rich solution engineered for large-scale commercial and institutional audio distribution. Delivering a robust 240 watts of highly efficient digital amplification, this unit provides the power and precision necessary for clear background music, reliable multi-zone paging, and essential emergency communication systems in extensive facilities such as hospitals, airports, large office buildings, factories, and campuses.

Powerful 240W Output: Provides significant headroom to drive extensive speaker layouts across large venues with exceptional clarity.
Integrated 6-Zone Selector: Offers precise, independent audio distribution control across six distinct areas.
Advanced DSP Functionality: Benefits from built-in Digital Signal Processing (DSP), including essential features like feedback suppression and equalization for optimal, professional sound quality.
Emergency Broadcasting Ready: Equipped with essential priority inputs for seamless integration with life safety and fire alarm systems, ensuring critical alerts always take precedence.
Versatile Inputs: Multiple microphone and line inputs ensure broad compatibility with a wide range of audio sources and paging microphones.
