Name: TOA CM-760 Separate Type Ceiling Speaker
Brand: TOA
Availability: InStock

Disclaimer

Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch. Product data used in this website is based solely on its manufacturer provided information, authenticity and accuracy are their responsibility only.

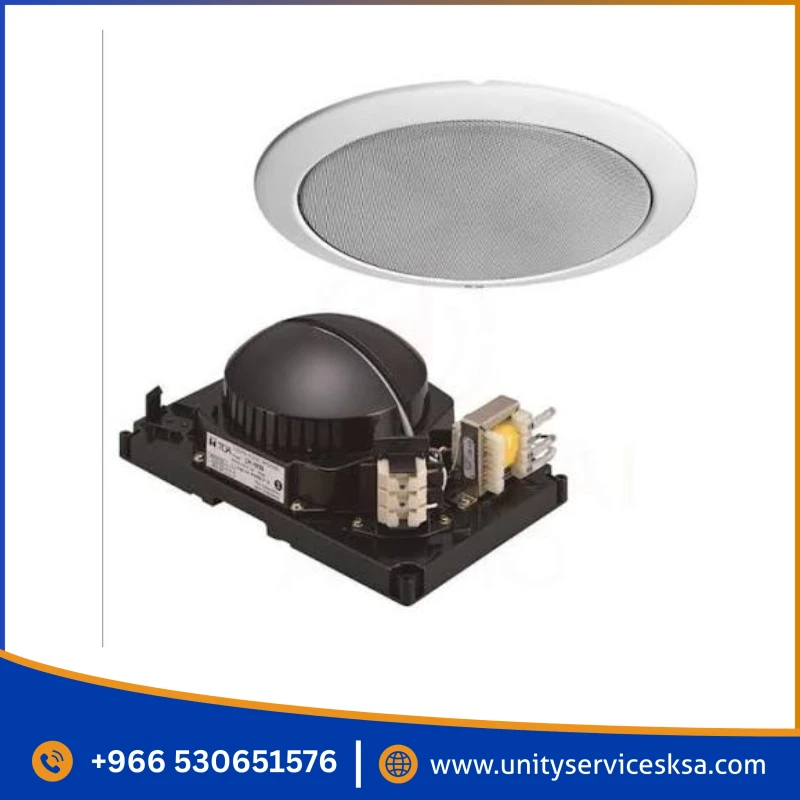

TOA CM-760 Separate Type Ceiling Speaker

Price: SAR 0

Brand: TOA

Model: CM-760

Key Features :

The CM-760 speaker allows selection of most suitable front panel out of the CP-70 series panels (optional) depending on the installation place. Thanks to its coil spring catch method, the panel can be easily attached to the speaker. The CM-760 comes with a push-in connector which permits instant wire connection for bridging and branch wiring. The speaker is protected by a hard speaker cover.

Download PDF

+966 +966

+966530651576 +966530651576

Demo Store....Coming Soon... Website Under Maintenance.... **المتجر التجريبي** **سيتم إطلاق الموقع قريبًا** **الموقع الإلكتروني قيد الصيانة حاليًا** نعتذر عن الإزعاج، ونعمل حاليًا على تطوير وتحسين الموقع لتقديم تجربة أفضل لكم. **شكرًا لثقتكم وتفهمكم.**

Specification
Description
Video
FAQ
Reviews (0)

Specification

TOA CM-760 Separate Type Ceiling Speaker
Rated Input	6 W
Rated Impedance	1.7 kΩ (6 W), 3.3 kΩ (3 W), (6.7 kΩ (1.5 W), 13 kΩ (0.8 W): Internal wiring must be changed)
Sound Pressure Level	90 dB (1 W, 1 m)
Frequency Response	100 - 16,000 Hz
Speaker Component	12 cm dynamic cone-type speaker
Dimensions for Fixing Hole	φ150 (mounting hole) × 50 (ceiling thickness) mm
Applicable Cables	600 V Vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 - φ1.2 mm 7-core twisted copper wire: 0.75 - 1.25 m㎡
Connection	Push-in connector (Bridging and branch connections possible.)
Finish	Grille: Fire-resistant, high-impact styrene resin (resin material grade: UL94 V-O or its equivalent), black
Dimensions	215 (W) × 134 (H) × 89 (D) mm
Weight	630 g
Applicable Panel	CP-70 series panel (option): CP-73, CP-77

Description

TOA CM-760 Separate Type Ceiling Speaker

The TOA CM-760 Separate Type Ceiling Speaker is a high-quality and flexible audio solution designed for professional public address systems where customized installation is required. Unlike standard ceiling speakers, this model comes in a separate type design, allowing the speaker unit and grille to be installed independently, making it ideal for projects with specific ceiling or interior requirements such as offices, hotels, hospitals, shopping malls, and commercial buildings.

With a 6W power rating, the CM-760 delivers clear and balanced audio, ensuring excellent speech intelligibility for announcements as well as smooth background music playback. It supports 100V line systems with multiple power tap options, making it easy to integrate into distributed PA systems with multiple speakers.

The speaker features a full-range driver unit that provides natural sound reproduction and wide dispersion for uniform coverage. Its design also allows compatibility with different types of ceiling panels and optional accessories for enhanced installation flexibility.

Built with TOA’s trusted quality and durable materials, the CM-760 ensures long-term reliability and stable performance in continuous-use environments. Overall, the TOA CM-760 is a dependable, adaptable, and professional ceiling speaker solution for customized PA system installations in Bangladesh and KSA.
