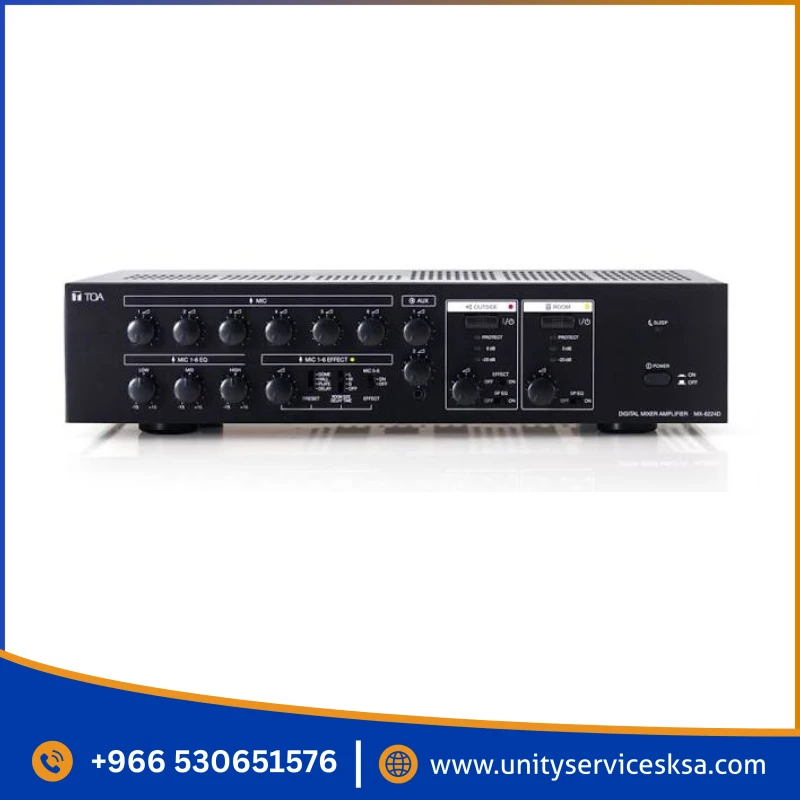

TOA MX-6224D 2x240W Digital Mixer Amplifier – Dual Channel PA System

Price: SAR 0

Brand: TOA

Model: MX-6224D

Key Features :

The MX-6224D, Digital mixer amplifier 2×240W, is designed for 2 zones Public address system that suitable for middle sized mosques application.

Download PDF

+966 +966

Demo Store....Coming Soon... Website Under Maintenance.... **المتجر التجريبي** **سيتم إطلاق الموقع قريبًا** **الموقع الإلكتروني قيد الصيانة حاليًا** نعتذر عن الإزعاج، ونعمل حاليًا على تطوير وتحسين الموقع لتقديم تجربة أفضل لكم. **شكرًا لثقتكم وتفهمكم.**

Specification
Description
Video
FAQ
Reviews (0)

Specification

TOA MX-6224D 2x240W Digital Mixer Amplifier
Power Source	220 V - 240 V AC, 50/60 Hz
Power Output	240 W × 2 channels (100 V, 42 Ω, rated output)
Power Consumption	100 W (according to IEC60065), 570 W (at rated output, both channels)
Frequency Response	50 Hz - 20 kHz, ±3 dB (at 1/3 rated output, rated load, from power amplifier input)
Distortion	1 % or less (at 1 kHz, 1/3 rated output power)
Input	MIC 1: -50 dB (1) (24 V phantom powered)/-60 dB (1) (phantom power OFF) 600 Ω, electronically-balanced, φ6.3 mm phone jack (3P:balance) MIC 2 - 4: -66 dB (1), 200 Ω, electronically-balanced, XLR-3-31 type and φ6.3 mm phone jack (3P:balance) (either one usable) MIC 5 - 6: -60 dB (1), 600 Ω, electronically-balanced, XLR-3-31 type and φ6.3 mm phone jack (3P:balance) (either one usable) AUX 1: -10 dB (1), 10 kΩ mixed monaural, unbalanced, RCA pin jacks (1 pair) AUX 2: -20 dB (1), 10 kΩ mixed monaural, unbalanced, φ3.5 mm mini jack (3P:stereo) Power amplifier input: 0 dB (*1), 10 kΩ, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)
Output	Speaker output: 2 zones, 100 V (42 Ω), galvanic isolated balanced, M4 screw terminal Recording output: 0 dB (1), 600 Ω monaural, unbalanced, RCA pin jacks (1 pair) Effect bus output: 0 dB (1), 600 Ω monaural, unbalanced, RCA pin jacks (1 pair) Preamplifier output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)
Phantom Power	ON/OFF switchable for MIC 1 and XLR-3-31 type connectors of MIC 2 - 6
Signal to Noise Ratio	60 dB or more (All volume controls: min.)
Controls	6 Microphone volume controls, 2 AUX volume controls, 1 ROOM output switch, 1 ROOM volume control, 1 OUTSIDE output switch, 1 OUTSIDE volume control, 1 Effect control (0 % to 100 %) of Effect bus, 1 Effect preset type selection switch (DOME/HALL/PLATE/DELAY), 1 Effect Room size/Delay time selection switch (L/M/S/OFF), 1 Effect output selection switch (OFF/ON), 1 MIC 5-6 effect switch, 1 Low EQ control (±15 dB, 80 Hz) for MIC 1 - 6, 1 Mid EQ control (±15 dB, 2.5 kHz) for MIC 1 - 6, 1 High EQ control (±15 dB, 12 kHz) for MIC 1 - 6, 1 Speaker EQ (TC-631M, TC-651M) switch for OUTSIDE output, 1 Speaker EQ (BS-1030B, BS-1030W) switch for ROOM output, 1 Power switch, 1 Phantom switch for MIC 1, 1 Phantom switch for MIC 2 - 6 (XLR-3-31)
Indicators	SLEEP indicator Output Level meters (2 points, -20 dB and 0 dB) for ROOM and OUTSIDE Protection indicators for ROOM and OUTSIDE amplifiers Output indicators for ROOM and OUTSIDE EFFECT indicator for MIC 1 - 6
Operating Temperature	0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)"
Operating Humidity	35 % to 80 %RH (no condensation)
Dimensions	420 (W) × 99.8 (H) × 360.6 (D) mm (16.54 × 3.93" × 14.2")
Weight	6.1 kg (13.45 lb)

Description

TOA MX-6224D 2x240W Digital Mixer Amplifier – Dual Channel PA System

Designed specifically for the unique acoustic challenges of mosques and large halls, the TOA MX-6224D is more than just an amplifier—it is a complete sound-management solution. With a dual-channel 240W + 240W output, this digital powerhouse allows you to manage indoor and outdoor speakers independently, ensuring the prayer or speech is heard with absolute clarity both inside and out.The TOA MX-6224D 2×240W Digital Mixer Amplifier is a powerful and flexible audio solution designed for medium to large-scale public address systems that require high output and multi-channel performance. With dual 240W amplifier channels, it delivers strong, clear, and distortion-free sound, making it ideal for mosques, auditoriums, educational institutions, shopping malls, and commercial facilities.

This unit features a built-in digital mixer with multiple microphone and auxiliary inputs, allowing seamless connection of microphones, media players, and other audio sources. The dual-channel design enables separate speaker line control, making it suitable for managing different zones or applications within the same system.

Supporting 100V line speaker systems, the MX-6224D integrates بسهولة with distributed PA setups using ceiling, wall, or horn speakers. Powered by advanced digital amplifier technology, it ensures high efficiency, low power consumption, and minimal heat generation, making it reliable for continuous operation.

Engineered for excellent speech intelligibility and low noise performance, it is ideal for announcements, paging, and background music. Its durable build quality, combined with user-friendly controls, ensures stable long-term performance and easy operation.

Overall, the TOA MX-6224D is a dependable, high-capacity, and professional digital mixer amplifier, perfect for advanced PA system installations in Bangladesh and KSA.

The MX-6224D features built-in DSP optimization and a dedicated Feedback Suppressor, making it the gold standard for environments where speech intelligibility is the top priority.
