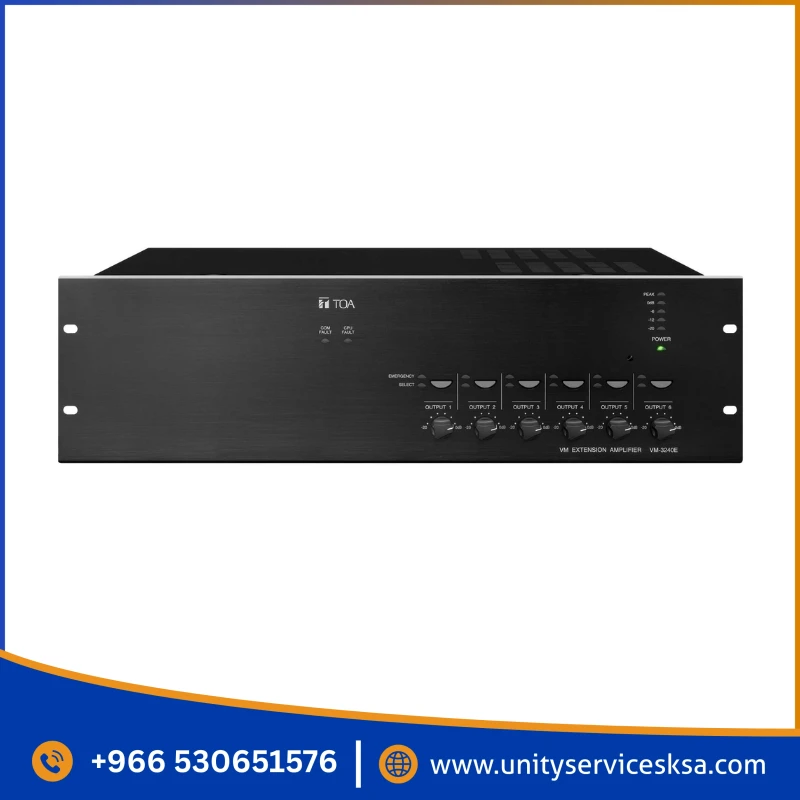

Name: TOA VM-3240E 6-Zone Expansion Amp – Add 240W Power & 6 Speaker Zones to VM-3240VA Master Controller
Brand: TOA
Availability: InStock

Disclaimer

Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch. Product data used in this website is based solely on its manufacturer provided information, authenticity and accuracy are their responsibility only.

TOA VM-3240E 6-Zone Expansion Amp – Add 240W Power & 6 Speaker Zones to VM-3240VA Master Controller

Price: SAR 0

Brand: TOA

Model: VM-3240E

Key Features :

The VM-3240E is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with the speaker output section which has an internal attenuator and 6-output selector. In addition, the unit features the surveillance function which automatically checks the system for failures.

Download PDF

+966 +966

Demo Store....Coming Soon... Website Under Maintenance.... **المتجر التجريبي** **سيتم إطلاق الموقع قريبًا** **الموقع الإلكتروني قيد الصيانة حاليًا** نعتذر عن الإزعاج، ونعمل حاليًا على تطوير وتحسين الموقع لتقديم تجربة أفضل لكم. **شكرًا لثقتكم وتفهمكم.**

Specification
Description
Video
FAQ
Reviews (0)

Specification

TOA VM-3240E 6-Zone Expansion Amp
Power Source	230 V AC, 50/60 Hz
Power Consumption	600 W (with rated output signal), 260 W (according to EN62368-1)
Rated Output	240 W
Frequency Response	50 Hz - 20 kHz, ±3 dB (at 1/3 rated output)
Distortion	0.7 % or less (at rated output, 1 kHz)
Output	Speaker output 1 - 2: Max. (240 W) per output Speaker output 3 - 6: Max. (120 W) per output Speaker output 1 - 6: Total within 240 W, removable terminal block (14 pins) Allowable minimum load: 500 Ω (20 W) at 100 V line for speaker line failure detection Direct output: Direct output from internal or external amplifier, removable terminal block (16 pins)
Power Input/Output	Power in: Connecting the VX-2000DS only (operating range: 20 - 40 V DC) PS out: 28 V DC/18 A M4 screw terminal, distance between barriers: 11 mm (0.43")
Operating Temperature	-5 ℃ to +45 ℃ (23 ゜F to 113 ゜F)
Operating Humidity	5 % to 95 %RH (no condensation)
Dimensions	482 (W) × 132.6 (H) × 407 (D) mm (18.98" × 5.22" × 16.02")
Weight	16.5 kg (36.38 lb)

Description

TOA VM-3240E 6-Zone Expansion Amp – Add 240W Power & 6 Speaker Zones to VM-3240VA Master Controller

The VM-3240E is a 3U rack-mount unit that adds another 6 speaker zones and another 240W of power to your system. It is fully EN 54-16 certified for life-safety applications. The TOA VM-3240E is a commercial-grade 6-zone extension amplifier engineered exclusively to expand the power output and broadcast coverage of the TOA VM-3000 Series integrated voice evacuation network. Certified strictly to the stringent EN 54-16 European standard for fire alarm systems, this high-performance unit acts as a seamless secondary core to add mass notification capacity to your building's life-safety infrastructure.

Occupying a standard 3U rack-mount chassis, the unit houses a powerful 240W digital power amplifier configured to drive extensive 100V high-impedance distributed speaker lines. It instantly adds 6 independent speaker zones to your setup, each heavily equipped with its own dedicated attenuator and front-panel selection buttons. This enables system integrators to scale up large multi-room or multi-floor layouts smoothly, routing localized background music, general public paging, and high-priority emergency alerts to specific building sectors.

For maximum life-safety assurance, the VM-3240E features a monitored emergency input that links directly with a master VM-3240VA controller. It includes continuous speaker line surveillance to detect open or short circuits, alongside an automated 24V DC battery backup input to safeguard against sudden power failures.
