Name: TOA VX-3150DS Power Supply Manager – EN54-4 Certified Emergency Battery Charger
Brand: TOA
Availability: InStock

Disclaimer

Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch. Product data used in this website is based solely on its manufacturer provided information, authenticity and accuracy are their responsibility only.

TOA VX-3150DS Power Supply Manager – EN54-4 Certified Emergency Battery Charger

Price: SAR 0

Brand: TOA

Model: VX-3150DS

Key Features :

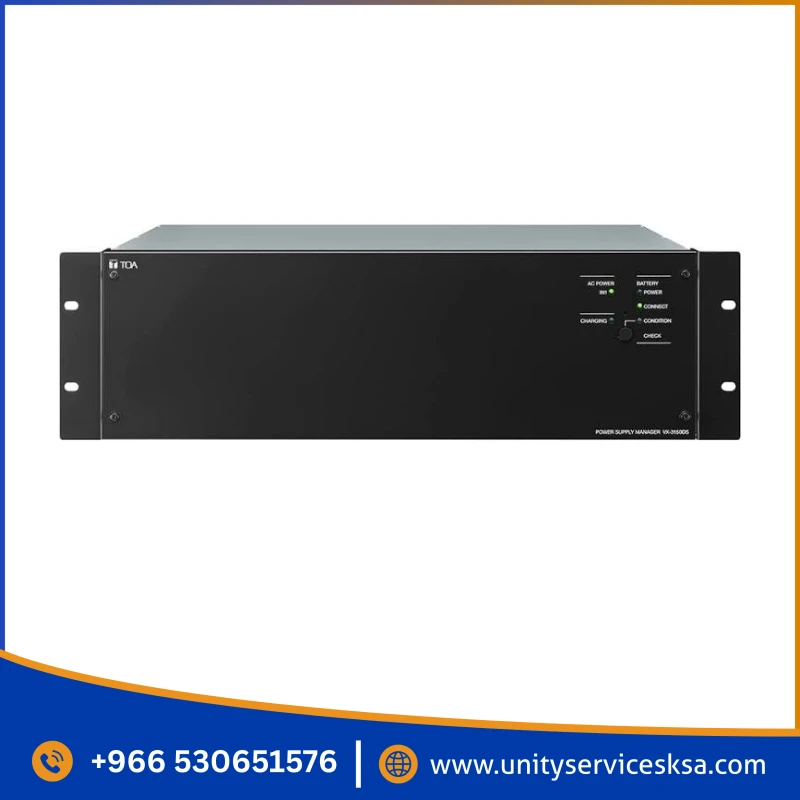

The VX-3150DS is an Emergency Power Supply Manager used for the VX-3000 systems.
It is a 3U rack-mount unit equipped with a battery charger and a switching power supply, which contribute to rack space, energy-saving and lightweight design.
The VX-3150DS features easy maintenance as function setting switch and shutdown switch inside the front panel, and fuse replacement can be performed on the unit's rear side.

Download PDF

+966 +966

Demo Store....Coming Soon... Website Under Maintenance.... **المتجر التجريبي** **سيتم إطلاق الموقع قريبًا** **الموقع الإلكتروني قيد الصيانة حاليًا** نعتذر عن الإزعاج، ونعمل حاليًا على تطوير وتحسين الموقع لتقديم تجربة أفضل لكم. **شكرًا لثقتكم وتفهمكم.**

Specification
Description
Video
FAQ
Reviews (0)

Specification

TOA VX-3150DS Power Supply Manager
Power Source	220-230 V AC, 50/60 Hz
Power Consumption	1460 W max in total (at rated output with charging) 460 W max in total (EN62368-1)
DC Power Output (AC mode)	Rated output: 1140 W (total DC power output) Peak output: 1280 W (total DC power output)
Current Specification	Maximum output current from the battery: 25 A Rated maximum continuous output current, I max. a: 25 A Rated maximum short duration output current, I max. b: 25 A Rated minimum output current, I min: 0 A Ripple Voltage at I max. b: 4 V max
DC Power Output	8 x 31 V (19-33 V) 25 A max. each, M4 screw terminal, distance between barriers: 11 mm (0.43") 3 x 31 V (19-33 V) 5 A max. each, removable terminal block (3 × 2 pins) 1 x 24 V (16-25 V) 0.3 A max., removable terminal block (1 × 2 pins)
Charging Output Voltage	27.3 V ±0.3 V (at 25 ℃ (77 ゜F)) Temperature correction coefficient: -40 mV/℃
Battery Connection	1 pair of positive and negative terminals Applicatble cable diameter: AWG 6 - AWG 0 (AWG 1/0) (16 mm² - 50 mm²) Line resistance within 4m Ω/total
Applicable Battery	Yuasa: NPL65-12I (65 Ah), NPL100-12 (100 Ah)
Operating Temperature	-5 ℃ to +45 ℃ (23 ゜F to 113 ゜F)
Dimensions	482 (W) x 132.6 (H) x 400.5 (D) mm (18.98" × 5.22" × 15.77")
Weight	9.0 kg (19.84 lb)
Accessory	Fuse (T8A H) …1, Fuse (T6.3A L) …2, Blade fuse (35 A) …2, Rack mounting screw (with washer) …4, Power cord (2 m (6.56 ft)) …2, Fastener hook …4, Fastener loop …4, Thermal insulating sheet …1, CAT5-STP cable (3 m (9.84 ft)) …1, Ferrite clamp …1

Description

TOA VX-3150DS Power Supply Manager – EN54-4 Certified Emergency Battery Charger
The VX-3150DS is designed to provide stable 31V DC power to all system components (Frames and Amplifiers) while simultaneously managing a backup battery bank. It is the "safety net" of the system, capable of switching to battery power instantly if the AC mains supply drops.The TOA VX-3150DS is a highly reliable, rack-mountable power supply manager engineered exclusively to deliver stable DC power and intelligent battery management for TOA’s premier VX-3000 Series voice evacuation system. Fully certified to the stringent EN 54-4 European standard for fire detection and alarm systems, this mission-critical emergency manager ensures your life-safety network remains completely operational, even during total mains power failures.
Occupying 2U of standard EIA rack space, the unit features a smart built-in battery charger optimized for keeping 24V sealed lead-acid backup batteries at peak capacity. It automatically transitions to secondary battery power instantly during blackouts without audio dropouts or system resets. The VX-3150DS is heavily equipped with six independent 31V DC power outputs (each fitted with its own circuit breaker) to safely distribute power to multiple digital amplifier modules and voice evacuation frames.
To streamline system integration, it includes an uninterruptible 24V DC service output alongside a specialized 24V DC auxiliary output for auxiliary network gear. Built-in status indicators provide instant tracking of mains connectivity, charging status, and battery conditions, ensuring seamless commercial security.
